Electrofishing Backpack Anode


A clamp mechanism at the anode pole tip allows the angle of the anode ring to be adjusted to best suit the operators height and stance and reduce fatigue. The high visibility cable is Kevlar reinforced for strength, and has a safety insulation rating on 3kV for maximum operator protection.





Ordering Information

To order products, please use the following part numbers as a reference.

Products


Electrofishing Anode EF00167

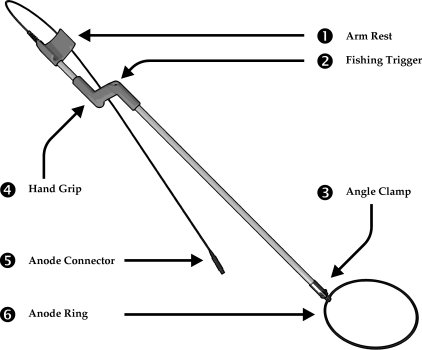

Features

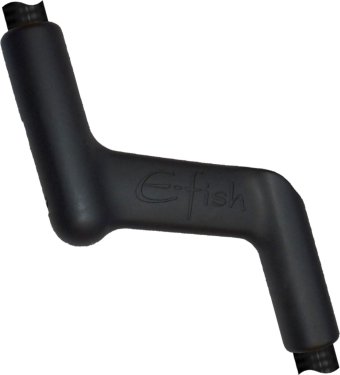

  • Ergonomic handle design
  • Light weight construction - only 1.75kg
  • Durable, Kevlar reinforced, high visibility cabling.
  • Clamp allowing the angle of the anode ring to be adjusted.



Specifications

Anode Pole

Dimensions 1550mm (Tip to Armrest)

1200mm (Top to Grip)

Weight 1.5kg (without ring)
Construction Fibreglass, ABS and Polyurethane
Cabling 1.8m length,Kevlar reinforced, 3kV insulated cable with 1.5mm2 conductor cross section.
Temperature 0°C to +40°C in air
Environmental IP67



Assembly
